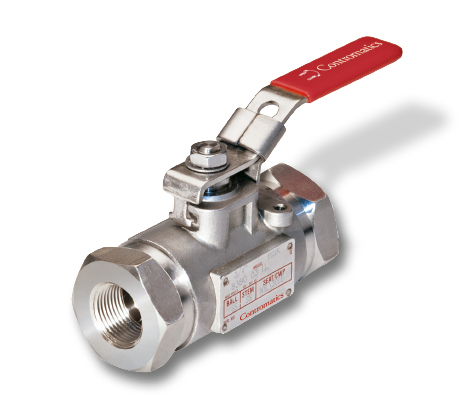

SERIES 7300-M3 & SERIES 8300-M3 –

Contromatics 3-Piece High Pressure Ball Valves

Series 7350/8350
3/4"-21/2" Reduced Port, 4500 WOG*
7350-Carbon Steel Body Stainless Steel Trim
8350-All Stainless Steel Construction

Series 7380/8380
1/4"-2" Full Port, 4500 WOG*
7380-Carbon Steel Body Stainless Steel Trim
8380-All Stainless Steel Construction

GENERAL DESIGN FEATURES

  1. Locking handle standard, oval locking handle optional
  2. Bottom loaded blowout proof stem
  3. Adjustable packing gland
  4. ANSI B16.34, class 1500 wall thicknesses
  5. Mineral filled seats (optional) (250 PSI steam service)
  6. Threaded ends (ANSI B1.20.3)
  • Optional seats to 4500 WOG*
  • Temperatures to 600˚F**
  • NACE MR0175 compliant
