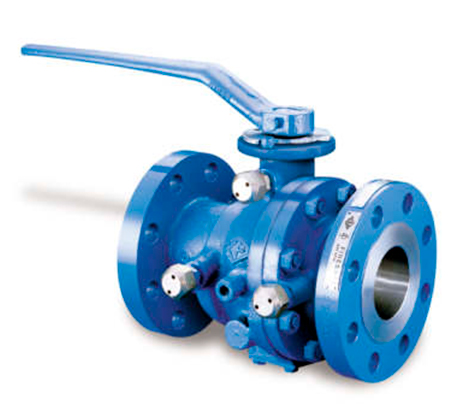

SERIES FAE –

Trunnion Mounted Ball Valve

This high quality two-piece split body trunnion mounted ball valve conforms to API 6D, ASME B16.34 and ASTM specifications. Devlon® seats are standard.
All seats are retained in metal holders which are spring-loaded against the ball for low pressure, firesafe sealing. Series FA/FAE valves are offered in: 2" thru 12" class 150 & 300

FEATURES

  • Double block and bleed
  • Self relieving seat
  • Anti-blowout stem design
  • O-rings plus firesafe packing prevents leakage
  • Corrosion resistant low friction bearings
  • Inconel® wave springs to provide upstream and downstream sealing
  • Stainless steel sealant injection fittings for emergency stem or seat sealing
  • Minimized torque required to open and close valve
  • Antistatic device for grounding of the ball, stem/trunnion and body
  • Integral topworks direct mounting pad
  • 8" & larger valves are equipped with lifting lugs
